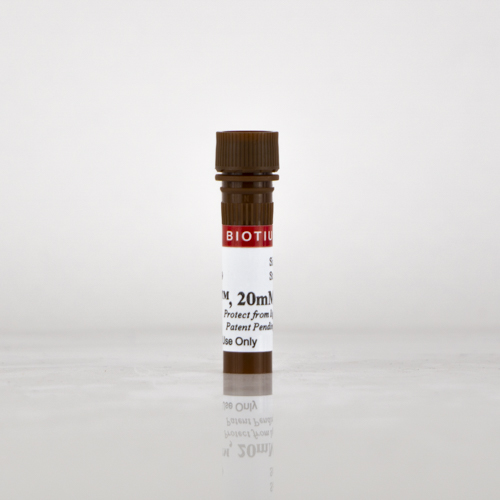

PMAxx™, 20 mM in H2O
Référence 40069
Conditionnement : 100UL
Marque : Biotium
PMAxx™ Dye, 20 mM in H2O
Viability PCR dye, a new and improved version of the popular viability dye propidium monoazide (PMA).

Viability PCR dyes like PMAxx™ or PMA are membrane-impermeant, which makes them dead cell specific. Once inside of a dead cell, they bind to DNA. Exposure to intense visible light renders the dyes reactive, and causes them to covalently attach to the DNA. This DNA modification prevents amplification in subsequent PCR reactions.
The basic v-PCR workflow involves the following 5 steps: dye addition, incubation, light exposure, DNA extraction, and qPCR.
Live or dead bacteria treated with either PMA or PMAxx™ prior to qPCR. Dead bacteria treated with either PMA or PMAxx™ show delays in amplification compared to either live cells, or untreated dead cells. Bacteria treated with PMAxx™ show a larger delay than those treated with PMA. Therefore PMAxx™ is better able to differentiate live vs dead bacteria by viability PCR.
E. coli were killed with mild heat treatment (56°C for 3 hrs) and treated with PMAxx™ or PMAxx™ + Enhancer, followed by light exposure using PMA-Lite™, DNA purification, and qPCR with Fast EvaGreen® qPCR Master Mix. dCt values were calculated by subtracting the Ct without dye from the Ct with dye. Only dead cells treated with PMAxx™ + Enhancer showed a large dCt, indicating that the dye successfully inhibited PCR of dead cell DNA.Product Description
PMAxx™ is a photoreactive DNA-binding dye for viability PCR. It was designed by Biotium scientists to be a superior alternative to the popular viability dye propidium monoazide (PMA).
- Selectively detect viable cells using qPCR
- Better live/dead discrimination of bacteria than PMA
- Dead cell specific dye, binds to DNA
- Covalently attaches to DNA after photoactivation
- 20 mM in water, 100 uL volume
- λAbs = 464 nm (before photolysis); λAbs/λEm= ~510/~610 nm (with DNA/RNA, after photolysis)
To learn more about the advantages of determining microbial or cell viability using viability PCR, visit the Viability PCR Technology Page.
About PMAxx™
PMAxx™ dye is a DNA modifier used for viability PCR, invented by scientists at Biotium. PMAxx™ is a new and improved version of our popular viability dye PMA (propidium monoazide). Like PMA, PMAxx™ is a photo-reactive dye that binds to DNA with high affinity. Upon photolysis with visible light, PMAxx™ dye becomes covalently attached to DNA. This modified DNA cannot be amplified by PCR. PMAxx™ dye is designed to be cell membrane-impermeant. Thus, in a population of live and dead cells, only dead cells are susceptible to DNA modification due to compromised cell membranes. This unique feature makes PMAxx™ highly useful in selective detection of live bacteria by qPCR.
PMAxx™ was designed by Biotium scientists to be a superior alternative to PMA, and is compatible with all existing PMA protocols, but with superior activity. While PMA is generally effective at differentiating between live and dead bacteria by qPCR, it does not completely eliminate PCR products from dead cell DNA. This could potentially give false positive results. Biotium's new dye PMAxx™ is much more effective at eliminating PCR amplification of dead cell DNA, and therefore provides the best discrimination between live and dead bacteria.
Technology
Highlighted Citations
The Full Spectrum Blog
Product Attributes
Size
Viability dye
Storage Conditions
Excitation/Emission
Assay type/options
Detection method/readout
Documents, Protocols, SDS and COA
COA
Request the Certificate of AnalysisReferences
Download list of curated PMA and PMAxx™ References and a list of PMA and PMAxx™ Validated Bacterial Strains.
Citations
Download list of curated PMA and PMAxx™ References and a list of PMA and PMAxx™ Validated Bacterial Strains.
