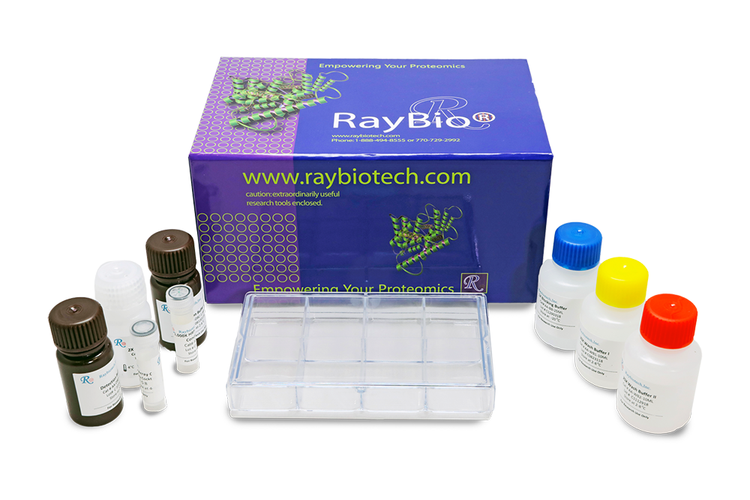

RayBio® C-Series Porcine Inflammation Array C1 Kit. Detects 26 Porcine Inflammation factors. Suitable for all liquid sample types.

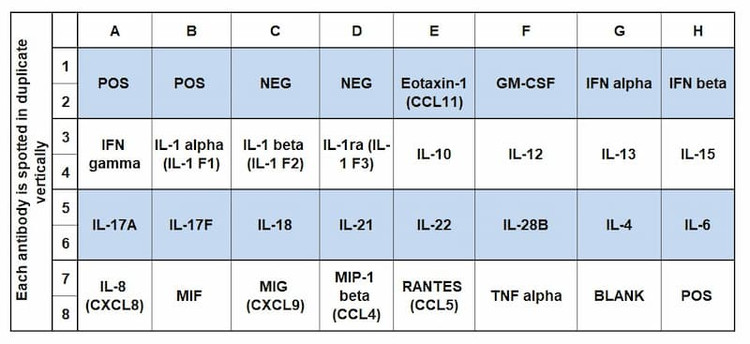

Porcine Inflammation Array C1 Map
Porcine Inflammation Array C1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Species | Porcine (pig) |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Accession Number | Q9TU73|Q711P4|B0FYK2|Q29118|P49879|Q29412|P17803|Q29053|Q95J68|Q95253|Q60I29|F1RKV0|P18430|P26889|Q29056|K7GM74|D0FHA1|Q04745|P26893|P26894|P80928|Q29288|P23563|Q29055|Q76LU6 |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 26 |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Research Area | Inflammation |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex
Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| Eotaxin-1 (CCL11)
| GM-CSF
| IFN alpha
| IFN-beta
| IFN-gamma
|
| IL-1 alpha (IL-1 F1)
| IL-1 beta (IL-1 F2)
| IL-1 Ra (IL-1 F3)
| IL-12 p70
| |
| IL-13
| IL-15
| IL-17A
| IL-17F
| IL-18
|
| IL-22
| IL-4
| IL-6
| ||
| IL-8 (CXCL8)
| MIF
| MIG (CXCL9)
| MIP-1 beta (CCL4)
| RANTES (CCL5)
|
| TNF alpha
| ||||
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process
Kit Components
- Porcine Inflammation Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Other Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Protocol Outline
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
