RayBio® C-Series Human Growth Factor Antibody Array 1 Kit. Detects 41 Human Growth Factors. Suitable for all liquid sample types.
Best Seller
Human Growth Factor Array C1
Human Growth Factor Array C1
Contact Us for Bulk Request
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 41 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex

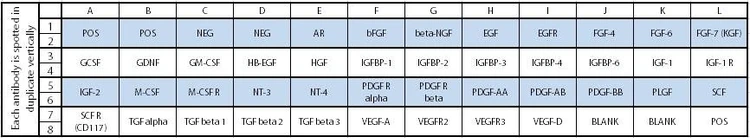

Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| Amphiregulin
| bFGF
| beta-NGF
| EGF
| EGFR
|
| FGF-4
| FGF-6
| FGF-7 (KGF)
| GCSF
| GDNF
|
| GM-CSF
| HB-EGF
| HGF
| IGFBP-1
| IGFBP-2
|
| IGFBP-3
| IGFBP-4
| IGFBP-6
| IGF-1
| IGF-1 R
|
| IGF-2
| M-CSF
| M-CSF R
| NT-3
| NT-4
|
| PDGF R alpha
| PDGF R beta
| PDGF-AA
| PDGF-AB
| PDGF-BB
|
| PLGF
| SCF
| SCF R (CD117/c-kit)
| TGF alpha
| TGF beta 1
|
| TGF beta 2
| TGF beta 3
| VEGF-A
| VEGFR2
| VEGFR3
|
| VEGF-D
| ||||

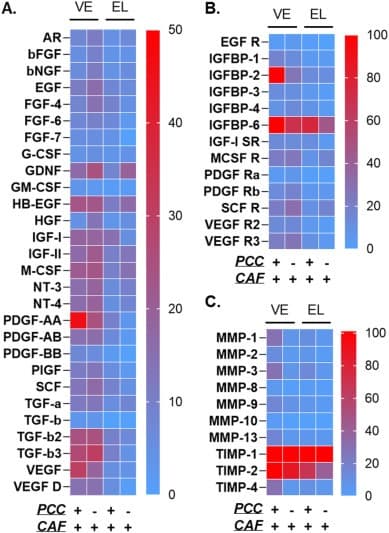

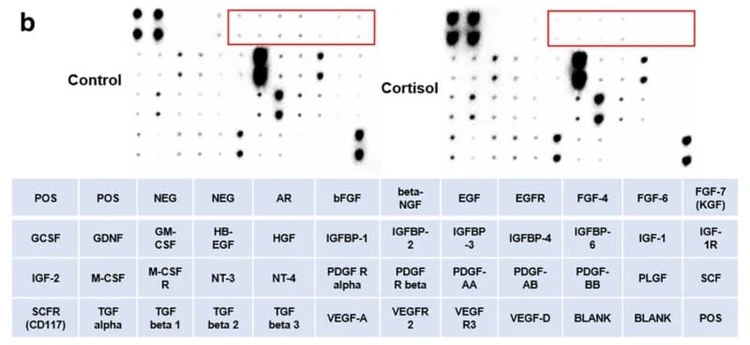

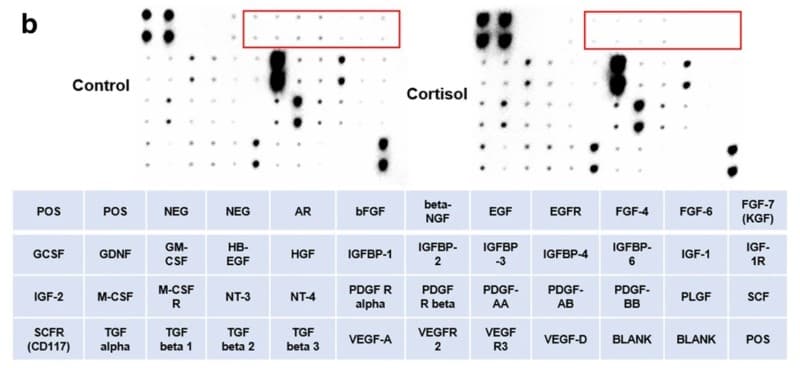

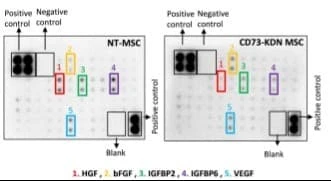

Typical Data

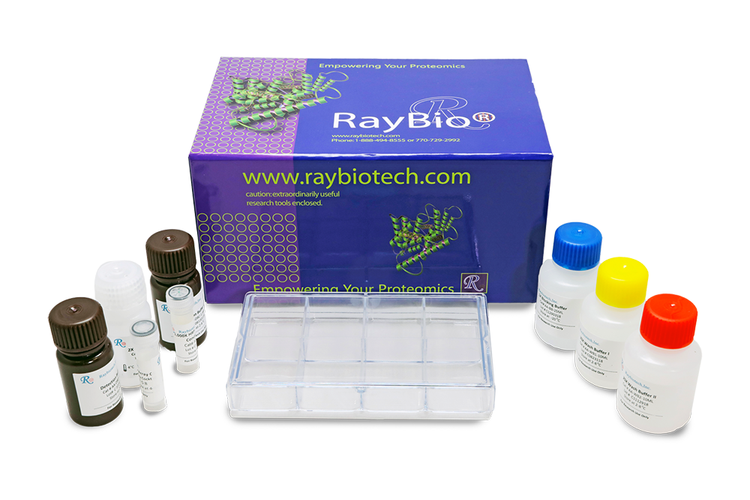

Kit Components
- Human Growth Factor Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
citations
Isoform-specific roles of QKI-6 and QKI-7 direct Schwann cell lineage progression and enhance peripheral nerve regeneration
- Species:
- Human
- Sample Type:
- Cell Culture Supernatant (filtered conditioned media CM from schwann cell precursors, schwann cells)
- Year:
- 2026
- Journal Name:
- Experimental and Molecular Medicine
- PubMed ID:
- 42067619
Mesenchymal stem cell activity across a graded scaffold-hydrogel composite biomaterial for tendon-to-bone enthesis repair
- Species:
- Human
- Sample Type:
- Cell Culture Supernatant (conditioned media from hMSCs on biphasic scaffolds)
- Year:
- 2025
- Journal Name:
- Bioactive Materials
- PubMed ID:
- 40703334
Mesenchymal stem cell-laden double-network hydrogel nerve guidance conduits for peripheral nerve injury repair
- Species:
- Human
- Sample Type:
- Cell Culture Supernatant (conditioned medium from ucMSC-laden NGCs)
- Year:
- 2025
- Journal Name:
- Bioactive Materials
- PubMed ID:
- 41036454
Tumor necrosis factor-α-treated human adipose-derived stem cells enhance inherent radiation tolerance and alleviate in vivo radiation-induced capsular contracture
- Species:
- Human
- Sample Type:
- Cell Culture Supernatant (culture media of adipose-derived stem cells)
- Year:
- 2025
- Journal Name:
- Journal of Advanced Research
- PubMed ID:
- 39019109
Isolation and Characterization of Marrow-Isolated Adult Multilineage Inducible (MIAMI) Cell-Derived Extracellular Vesicles Demonstrate Multifunctional Therapeutic Potential in Tissue Regeneration and Anti-Inflammatory Immunomodulation
- Species:
- Human
- Sample Type:
- Extracellular Vesicles (EVs protein)
- Year:
- 2026
- Journal Name:
- Cells
- PubMed ID:
- 41827829
Thioredoxin reductase-1 facilitates cellular plasticity and stemness mediated by TGF-β1 in non-small cell lung cancer
- Species:
- Human
- Sample Type:
- Other / Unspecified (A549 cells TXNRD1-WT vs sgTXNRD1)
- Year:
- 2026
- Journal Name:
- Cancer Biology & Therapy
- PubMed ID:
- 42709540
MED12 mutation induces RTK inhibitor resistance in NSCLC via MEK/ERK pathway activation by inflammatory cytokines
- Species:
- Human
- Sample Type:
- Cell Culture Supernatant (culture media from MED12 knock-out, parental H3122, PC9 cell lines)
- Year:
- 2025
- Journal Name:
- Cellular and Molecular Life Sciences
- PubMed ID:
- 40833497
Transplantable stem cell nanobridge scaffolds for accelerating articular cartilage regeneration
- Species:
- Human
- Sample Type:
- Human adipose tissue-derived mesenchymal stem cells (hMSC)
- Year:
- 2023
- Journal Name:
- Biomaterials
Viscoelastic hydrogels for interrogating pancreatic cancer-stromal cell interactions
- Year:
- 2023
- Journal Name:
- Materials Today Bio

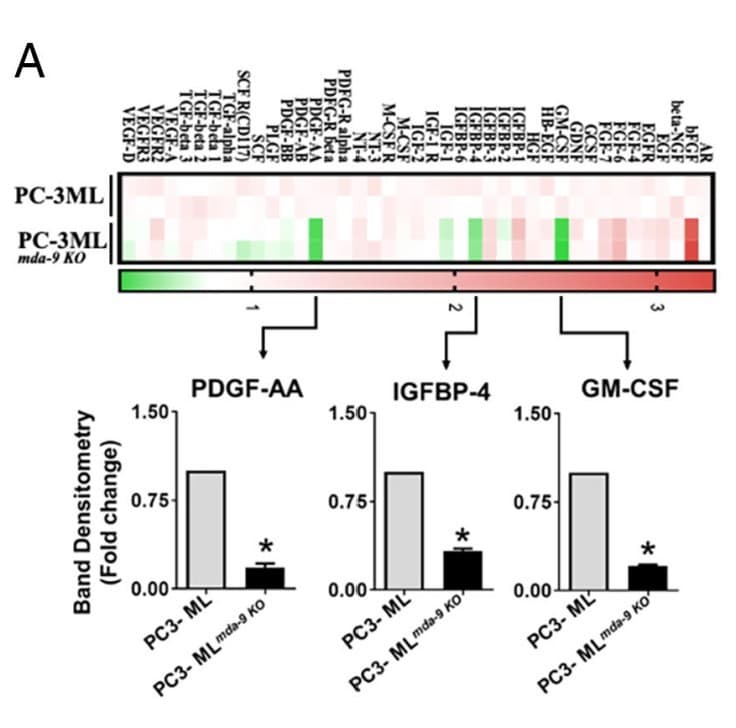

MDA-9/Syntenin in the tumor and microenvironment defines prostate cancer bone metastasis
- Year:
- 2023
- Journal Name:
- Proc Natl Acad Sci U S A
- PubMed ID:
- 37922327
