RayBio® C-Series Human Cytokine Antibody Array 1000 Kit. A combination of Human Cytokine Antibody Array C6 & C7. Detects 120 Human Cytokines. Suitable for all liquid sample types.
Best SellerHigh Density

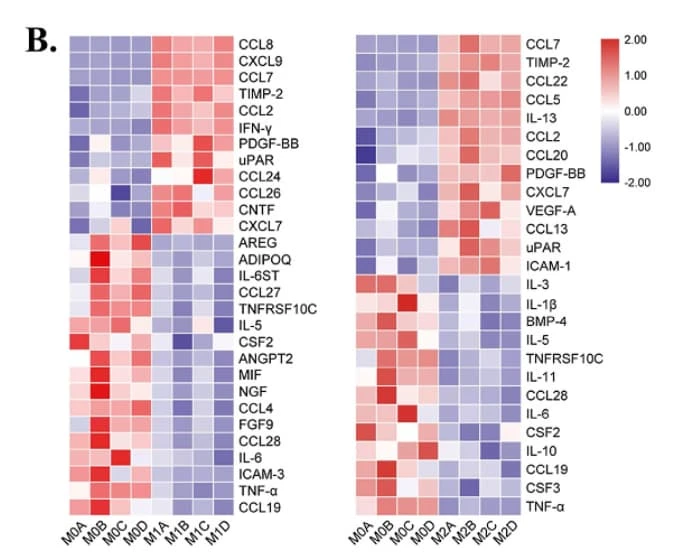

Figure adapted from Huang et al., Bioactive Materials, 2023.

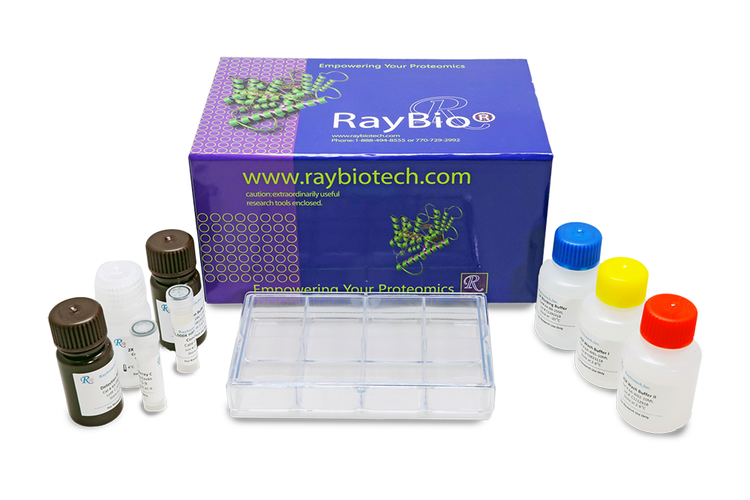

Human Cytokine Array C1000
Contact Us for Bulk Request
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 120 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex
Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| Adiponectin (ACRP30)
| AgRP
| Amphiregulin
| Angiogenin
| Angiopoietin-2
|
| Axl
| BDNF
| bFGF
| BLC (CXCL13)
| BMP-4
|
| BMP-6
| beta-NGF
| Betacellulin (BTC)
| CCL28 (MEC)
| CK beta 8-1 (CCL23)
|
| CNTF
| CTACK (CCL27)
| Dtk
| EGF
| EGFR
|
| ENA-78 (CXCL5)
| Eotaxin-1 (CCL11)
| Eotaxin-2 (MPIF-2/CCL24)
| Eotaxin-3 (CCL26)
| Fas (TNFRSF6/Apo-1)
|
| FGF-4
| FGF-6
| FGF-7 (KGF)
| FGF-9
| Flt-3 Ligand
|
| Fractalkine (CX3CL1)
| GCP-2 (CXCL6)
| GCSF
| GDNF
| GITR (TNFRSF18)
|
| GITR Ligand (TNFSF18)
| GM-CSF
| GRO alpha/beta/gamma
| GRO alpha (CXCL1)
| HCC-4 (CCL16)
|
| HGF
| I-309 (TCA-3/CCL1)
| ICAM-1 (CD54)
| ICAM-3 (CD50)
| IFN-gamma
|
| IGFBP-1
| IGFBP-2
| IGFBP-3
| IGFBP-4
| IGFBP-6
|
| IGF-1
| IGF-1 R
| IL-1 R4 (ST2)
| IL-1 R1
| IL-10
|
| IL-11
| IL-12 p40
| IL-12 p70
| IL-13
| IL-15
|
| IL-16
| IL-17A
| IL-1 alpha (IL-1 F1)
| IL-1 beta (IL-1 F2)
| IL-1 ra (IL-1 F3)
|
| IL-2
| IL-2 R alpha
| IL-3
| IL-4
| IL-5
|

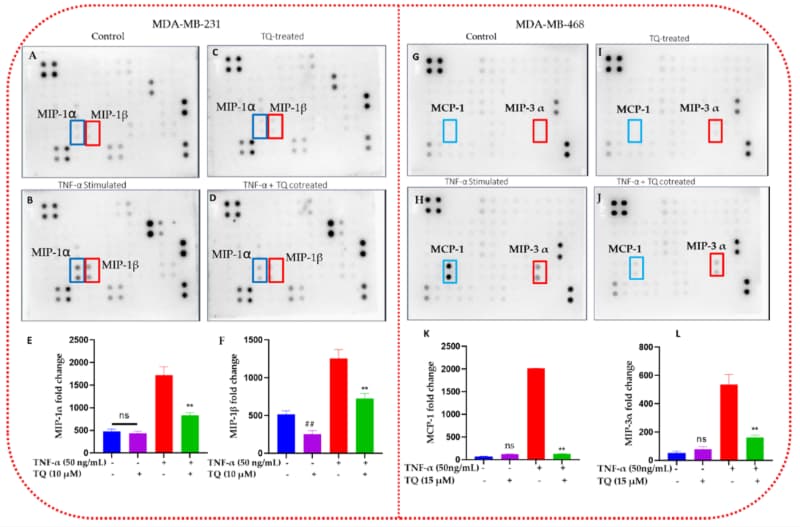

Typical Data
Kit Components
- Human Cytokine Antibody Array C1000 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
documents
Excel (AAH-CYT-6_Analysis_Tool.xls)
Excel (AAH-CYT-7_Analysis_Tool.xls)
citations

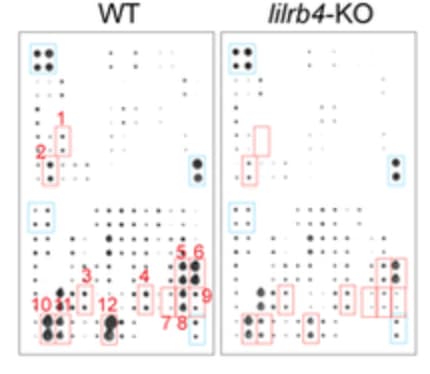

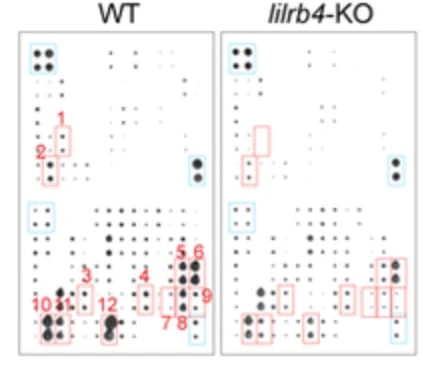

LILRB4 signalling in leukaemia cells mediates T cell suppression and tumour infiltration
- Year:
- 2018
- Journal Name:
- Nature
- PubMed ID:
- 30333625
Macrophage-Targeted Lipid Nanoparticle Delivery of microRNA-146a to Mitigate Hemorrhagic Shock-Induced Acute Respiratory Distress Syndrome
- Species:
- Human
- Sample Type:
- Human primary alveolar macrophages (AMs)
- Year:
- 2023
- Journal Name:
- Acs Nano

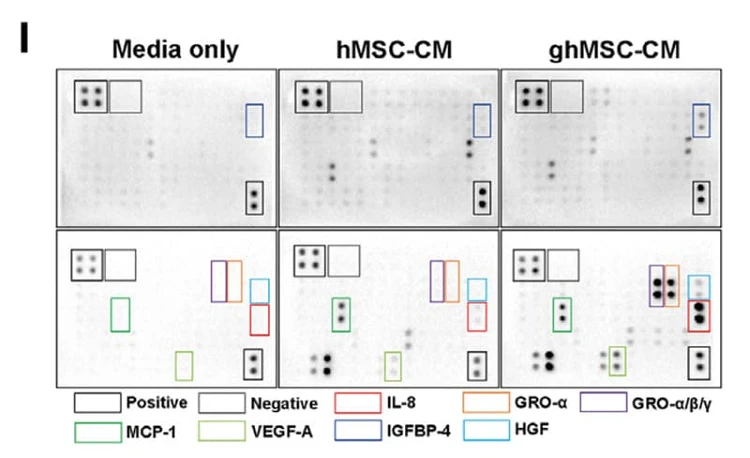

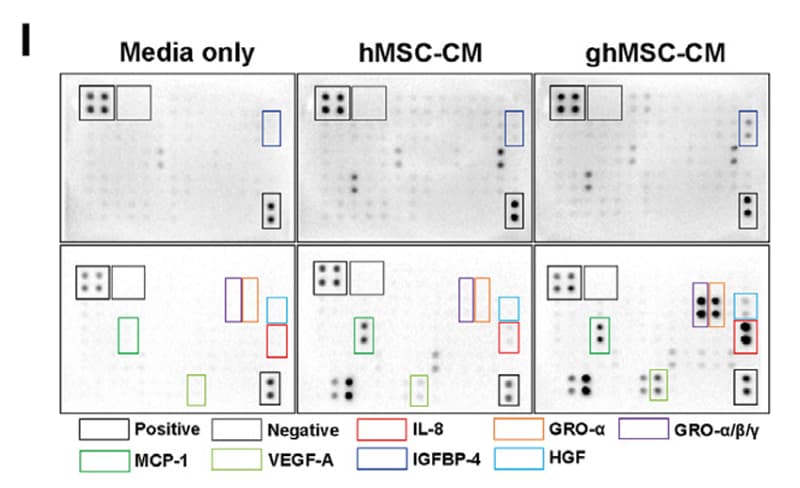

Neuroplasticity therapy using glia-like cells derived from human mesenchymal stem cells for the recovery of cerebral infarction sequelae
- Year:
- 2025
- Journal Name:
- Molecular Therapy
- PubMed ID:
- 39563032
Insulin Receptor Substrate-2 Regulates the Secretion of Growth Factors in Response to Amino Acid Deprivation
- Year:
- 2025
- Journal Name:
- International Journal of Molecular Sciences
- PubMed ID:
- 39859555
IL1R2 Blockade Alleviates Immunosuppression and Potentiates Anti-PD-1 Efficacy in Triple-Negative Breast Cancer
- Year:
- 2024
- Journal Name:
- Cancer Research
- PubMed ID:
- 38657120
JCPyV infection of primary choroid plexus epithelial cells reduces expression of critical junctional proteins and increases expression of barrier disrupting inflammatory cytokines
- Year:
- 2024
- Journal Name:
- Microbiol Spectr
- PubMed ID:
- 38874395
CTHRC1 promotes colorectal cancer progression by recruiting tumor-associated macrophages via up-regulation of CCL15
- Year:
- 2024
- Journal Name:
- J Mol Med (Berl)
- PubMed ID:
- 37987774

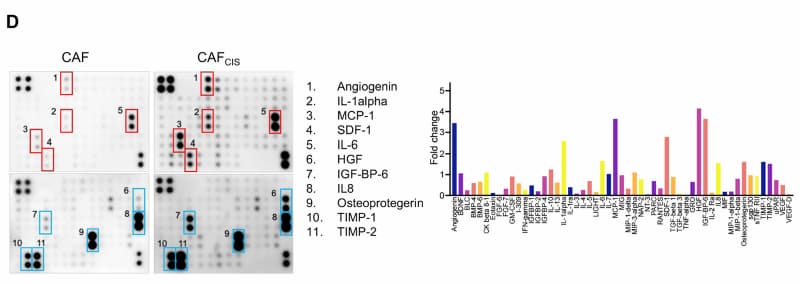

Chemotherapy-induced PDL-1 expression in cancer-associated fibroblasts promotes chemoresistance in NSCLC
- Species:
- Human
- Sample Type:
- Cancer-associated fibroblasts (CAFs)
- Year:
- 2023
- Journal Name:
- Lung Cancer
Infrapatellar Fat Pad Modulates Osteoarthritis-Associated Cytokine and MMP Expression in Human Articular Chondrocytes
- Year:
- 2023
- Journal Name:
- Cells
- PubMed ID:
- 38132170
Reciprocal Interaction of Cancer Stem Cells of Cholangiocarcinoma with Macrophage
- Species:
- Human
- Sample Type:
- HuCC-T1 cell
- Year:
- 2023
- Journal Name:
- Stem Cell Reviews and Reports
