WB analysis of whole cell (25 μg, lane 1) and histone extracts (15 μg, lane 2) from HeLa cells and 1 μg of recombinant histone H2A, H2B, H3 and H4 (lane 3, 4, 5 and 6, respectively) proteins using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade.
Dilution : 1:500

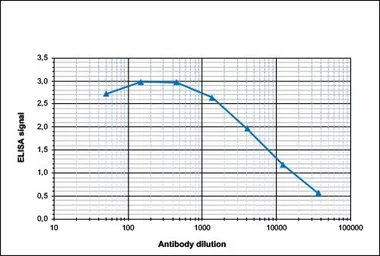

ELISA analysis of peptide containing the histone modification of interest using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade.

ICC/IF analysis of 4% paraformaldehyde fixed HeLa cells using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade.
Green : Primary antibody
Blue : DAPI
Dilution : 1:200

Dot blot analysis of 0.2 - 100 pmol of the peptides containing other modifications of histone H3 and H4 and the unmodified H3K27 sequence using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade.
Dilution : 1:5,000

ChIP analysis of sheared chromatin from 10⁶ HeLa cells using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade. The IP'd DNA was subsequently analysed on an Illumina HiSeq. Library preparation, cluster generation and sequencing were performed according to the manufacturer's instructions. The 50 bp tags were aligned to the human genome using the BWA algorithm. Figure 2 shows the enrichment in genomic regions of chromosome 6 and 20, surrounding the TSH2B and MYT1 positive control genes (fig 2A and 2B, respectively), and in two genomic regions of chromosome 1 and X (figure 2C and D).
Antibody amount : 1μg

ChIP analysis of sheared chromatin from 10⁶ HeLa cells using GTX60816 Histone H3K27me3 (Tri-methyl Lys27) antibody - ChIP grade. A titration consisting of 0.5, 1, 2 and 5 μg of antibody per ChIP experiment was analyzed. IgG (1 μg/IP) was used as a negative IP control. Figure 1A. Quantitative PCR was performed with primers specific for the promoter of the active GAPDH and EIF4A2 genes, used as negative controls, and for the inactive TSH2B and MYT1 genes, used as positive controls. The graph shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis). Figure 1B. Recovery of the nucleosomes carrying the H3K27me1, H3K27me2, H3K27me3, H3K4me3, H3K9me3 and H3K36me3 modifications and the unmodified H3K27 as determined by qPCR. The figure clearly shows the antibody is very specific in ChIP for the H3K27me3 modification.
