FISH Slides Automatic Pretreatment System

The FISH Slides Automatic Pretreatment System TL101 is designed to automate the processing of slides before fluorescence in situ hybridization and pathological analysis.

The system performs essential sample pretreatment stages including slide baking, dewaxing, ethanol treatment, permeabilization, enzymatic digestion, washing and dehydration. By automating these repetitive steps, the TL101 helps reduce manual handling, standardize laboratory procedures and improve the consistency of slide preparation.

The instrument can process up to 20 slides simultaneously and is suitable for paraffin-embedded tissue sections fixed with neutral buffered formalin, surgical tissue specimens, biopsy samples, exfoliated cells and blood cells.

Its interactive touchscreen enables users to select individual pretreatment stages, customize processing times and temperatures, save multiple experimental protocols and monitor the current step, temperature, elapsed time and overall process progress in real time.

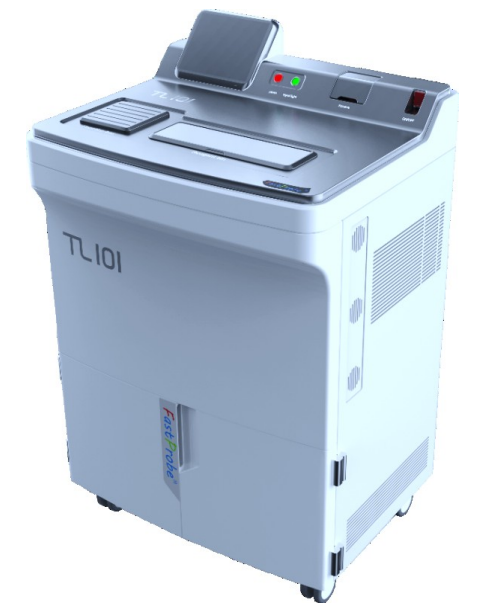

TL101 FISH Slides Automatic Pretreatment System





Product Features
  • Automated pretreatment of slides for fluorescence in situ hybridization
  • Processes up to 20 slides simultaneously
  • Suitable for paraffin-embedded tissue sections and cellular specimens
  • Automated slide baking and dewaxing
  • Automated ethanol treatment and permeabilization
  • Controlled enzymatic digestion
  • Automated washing, dehydration and drying
  • Independent selection of individual pretreatment stages
  • Customizable reaction times and temperatures
  • Multiple user-programmable experimental protocols
  • Semi-automatic mode for manual slide inspection
  • Adjustable enzymatic digestion time
  • Real-time process, temperature and countdown monitoring
  • Touchscreen interface available in English, French and Chinese
  • Programmable delayed-start function
  • Integrated reagent and waste-management system

Applicable Sample Types
  • Neutral-formalin-fixed paraffin-embedded tissue sections
  • Surgical tissue specimens
  • Biopsy and puncture specimens
  • Exfoliated cell preparations
  • Blood-cell preparations
  • Other microscope-slide specimens requiring controlled pretreatment

Product Specifications
Product Name FISH Slides Automatic Pretreatment System   Model TL101
Application Automated slide pretreatment before FISH and pathological analysis   Slide Capacity Up to 20 slides per run
Processing Time Approximately 1 to 2.5 hours, depending on protocol   Temperature Range Room temperature to 95°C
Time Setting Range 1 second to 24 hours   Temperature-Control Accuracy ≤±5°C
Temperature Uniformity ≤±1°C   Heating Time Approximately 10 minutes from room temperature to 95°C
Cooling Time Approximately 5 minutes from 95°C to room temperature   Operating Noise <60 dB
Dimensions 1101.73 × 720 × 573.72   Instrument Weight 95 kg
Operating Voltage AC 220 ±22 V, 50 Hz   Working Power 1500 W
User Interface Interactive touchscreen   Interface Languages English, French and Chinese

Operating Environment
Ambient Temperature 10°C to 30°C
Relative Humidity 30% to 70%
Atmospheric Pressure 86 kPa to 106 kPa
Installation Environment Indoor, well-ventilated and protected from direct sunlight, heat and strong air currents
Environmental Restrictions Not suitable for flammable or explosive environments

Product Details
Cat. No. Description
TL-101 FISH Slides Automatic Pretreatment System
